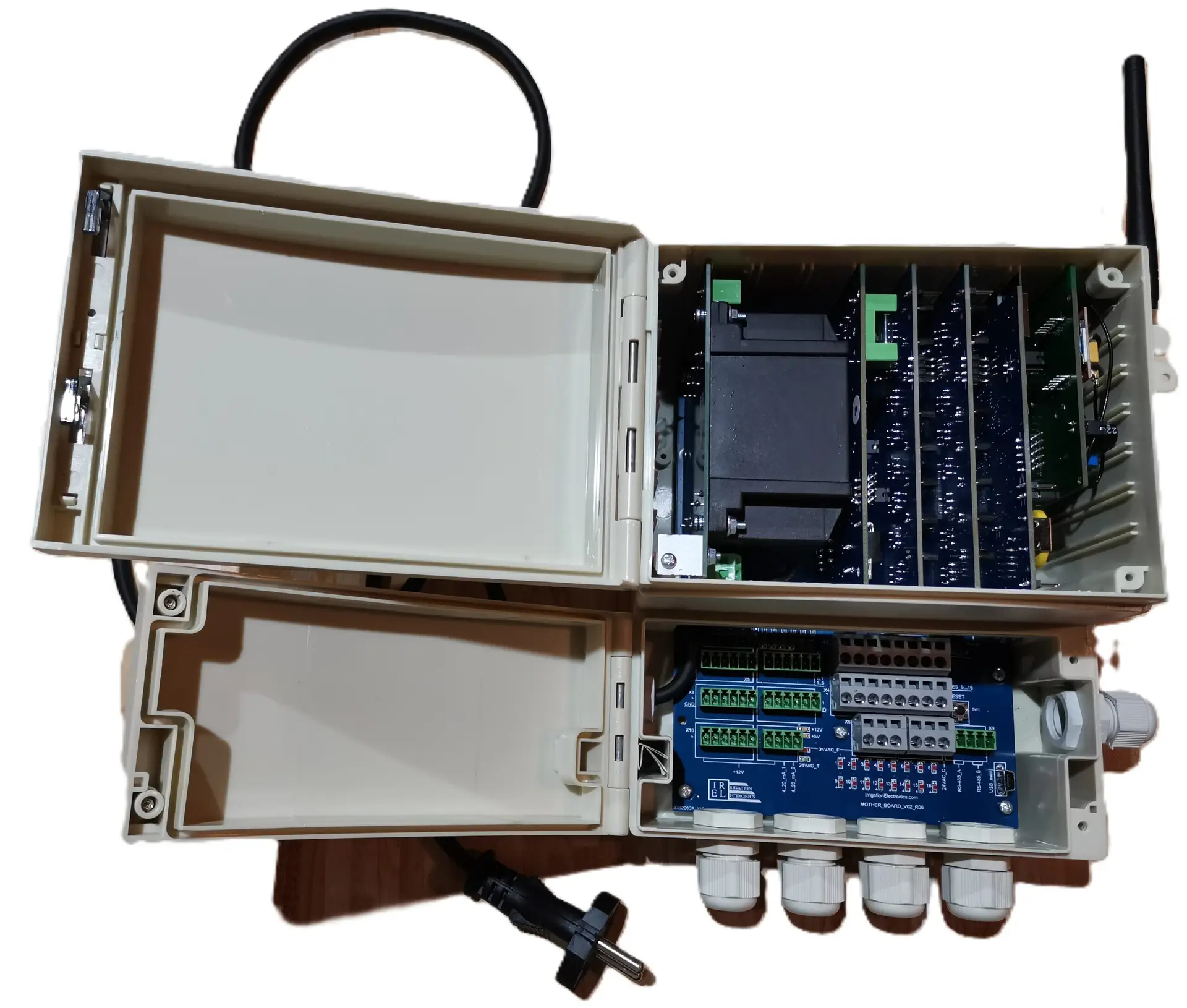

The IREL MASTER irrigation controller is the basis of a flexible control system for irrigation systems and other technological equipment.
The use of a large number of digital and analog sensors optimizes system control.
Connecting the controller to the Internet allows the user to control all processes from his personal computer.
The IREL MASTER irrigation controller can service a large number of sprinklers, which allows it to be used in medium and large-sized facilities.

Possibilities

Number of zones: from 8/16 to 64 (48 zones are connected via remote terminal devices (RTU))

Maximum number of remote devices: 28 (4/8 outputs and 3 analog inputs on each)

Communication interface with remote devices: RS-485

RS-485 bus length: up to 1200m.

Remote Device Communication Protocol: SDI-12

Physical communication channel with remote devices: 3-, 4- or 6-wire bus

Type: modular

Case: plastic, protection class IP-65

Irrigation control via: USB connection, local network or dedicated internet access

The system configuration and irrigation program are stored in independent memory

Recording events to a MicroSD memory card both in general status files, zones and sensors, and in separate files for each zone and each sensor

Transferring emergency messages in SMS notifications and recording them in a status file

Possibility to protect remote connection via firewall or password

Maximum number of zones that can be watered simultaneously: 5

Possibility of programming irrigation separately for each zone (4 programs per day for each zone)

Watering by time, by readings of soil moisture sensors, manual mode

Using water/soak cycles

Rain sensor lock for each zone

Possibility to start/stop irrigation for the entire system or for a separate zone

Possibility to set watering restrictions by the hour, day, week, month

The ability to set a threshold for the amount of water consumed by a zone per day

Ability to set a threshold for the amount of water consumed by zones simultaneously

Control of filling of storage tank

Control of irrigation and flood pumps

Blocking the supply of 24V AC voltage to the bus when there is no irrigation

Control of other technological processes through special zones

Possibility of connecting six digital sensors, six analog sensors of type 0..3V and two analog sensors of type 4..20mA to the inputs of the base device

 and three analog sensors to each remote RTU device

Monitoring of any sensor readings in real time

Possibility of changing the algorithms of zones operation

Possibility of filling remote device housings with compound to increase their noise immunity class to IP-68

Programmable sensor types

Soil moisture sensor

Rain sensor

Pressure sensor

Water flow sensor

Air temperature sensor

Soil temperature sensor

Watering stop level sensor

Fill level sensor

Watering stop level sensor

Overflow sensor

Flood sensor

Controller temperature sensor

Controller supply voltage sensor

Battery charge sensor

Current sensor in 24V AC circuit

Transformer secondary winding voltage sensorДатчик типа 0/1

Sensor type 0..3V

Sensor type 4..20mA

Operating algorithms for the following types of zones:

Sensory zone

Dependent zone

Time Zone

Main valve

Filling valve

Filling pump relay

Irrigation pump relay

24В

Special zone

Electrical characteristics

Input voltage: 230V/50Hz

Maximum current in 24V AC circuit:: 2,5А

Transformer power: 60 VA

Maximum current in the circuit 12V DC: 1,5A

Controller consumption in the +12VDC circuit in idle mode: 240mA

Controller consumption in the +12VDC circuit in operating mode (8 analog sensors and 5 operating zones): 370mA

Power consumption in the +12VDC circuit of the RTU module in idle mode: 20mA

Consumption in the +12VDC circuit of the RTU module with one valve operating: 30mA

Operating temperature range: -30 C to 70 C

Dimensions

218cm H*184cm W*122cm D
